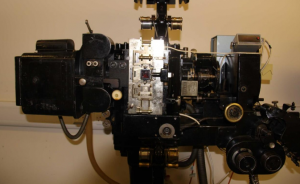

Newly acquired step printer from Imperial War Museum. Looking forwards to getting it working again and exploring customised uses.
As an inaugural project we want to commission Artist, Designer and Musician David Hopkinson to design a universal leader for 35 and 16mm.
More on this to come over next few months.
Definitions of project set-up.
The 2K format is given as 2048 x 1556 because its based on ‘Open Gate’ scanning of 35mm film. So that is the most width and height frame its possible to expose, as in a silent period film and therefore has no room for the optical soundtrack along the edge. In full 24.89mm x 18.6mm. see picture 1 and 2 below.
An ‘Open Gate’ frame is 2048 x 1556 and produces the Aspect Ration 1.33:1
NOW, our project will expose in this frame, 2048 x 1556 BUT the area normally used by the optical soundtrack will still be employed for that purpose and sound will (could) be generated by graphic waveforms etc. If you consult the geometry diagrams above you can see that FULL width exposure of a frame can be 24.89mm as in Super 35mm, a format that does the same thing Super 16mm does, expose onto the area used by the optical soundtrack. A format like Widescreen exposes onto a width measuring 21.95mm and basic Maths tells us that the optical soundtrack area is therefore 2.94mm wide. In Techniscope the width is given as 22mm wide. see picture 3 and 4 below.
Here you can see a piece of mylar black leader with racking lines and the area in Cyan where the optical soundtrack goes. (Here orientated on the right where it is in the projection gate, its on the left on the projection screen.)
If we image, via a lens onto the gate we can see in the picture on the right then any image produced in this area will not be seen in film projection but instead pass across the soundhead and produce some kind of audio. In the digital version of the Leader we can include the area as part of the complete visual design.
All this applies to a 16mm version where our gate, virtue of being a Super 16mm one means we can make exposures onto the optical soundtrack area.
So in our project the area designated for the soundtrack will be 2.94mm wide x 18.6mm high.
More simple Maths tells us that :
2048 width divided by 24.89mm = 82.3 pixels per mm.
1556 height divided by 18.6mm = 83.6 pixels per mm.
AND therefore the soundtrack area will be 242 pixels x 1555 pixels
Its worth saying also that you will ALWAYS BE CROPPING if you want the picture aspect ratio to follow a more widescreen (1.85:1) or 16:9 (1.77:1) layout.
The Cinemascope (2.35:1) format as produced with film differs from digital in that a large area of film is exposed and before animorphic expansion has the Aspect Ratio of 1.18:1
Animorphic expansion is achieved optically via the projection lens and doubles the width ONLY of the image making 2.36:1 or therabouts.
In a DCP cinemascope setting, no animorphic expansion takes place (DCI projectors dont have these adapters typically) meaning that you use the full width of the 2048 resolution but crop down the height of the frame until you hit the right ratio.
The inclusion of ANIMORPHIC elements in the Leader remains something to research. I have never seen a leader that has this feature.
Lastly for the purposes of graphic waveforms printed or otherwise the Aspect Ratio of this band is:
1 : 6.43
